3D Vision

새로운 시선, 3D 비전이 함께 합니다.

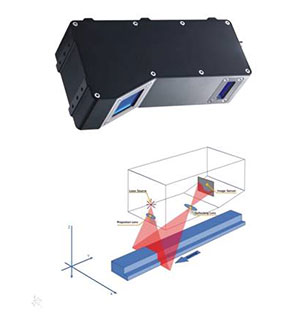

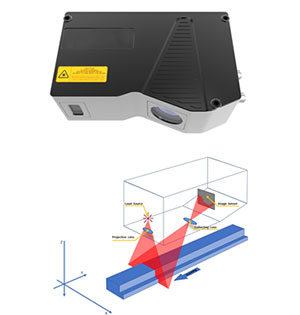

3D Laser Triangulation Sensor

구분 LNX 8030 LNX 8080 LNX 8300
수평 분해능
(Resolution X)		 8 - 10 μm 19 - 24 μm 54 - 98 μm
반복 정밀도
(Repeatability Z)		 0.4 μm 1 μm TBD
데이터포인트/프로파일 4096 4096 4096
해상도
(Field Of View)		 32 - 39 mm 78 - 96 mm 220 - 400 mm
이격 거리
(Clearance Distance)		 75 mm 245 mm 300 mm
측정 범위
(Measurement Range Z)		 40 mm 70 mm 410 mm
측정 속도
(Scan Rate)		 3.3 - 15 kHz 3.3 - 15 kHz 3.3 - 15 kHz
레이저 파장
(Illumination)		 Blue(405 nm, Class 3R) Blue(450 nm, Class 3R) Blue(405 nm, Class 3R)
구분 LOM025 LOM100 LOM125 LOM220
수평 분해능
(Resolution X)		 11 - 14 μm 28 - 50 μm 50 - 80 μm 80 - 160 μm
높이 분해능
(Resolution Z)		 1.6 - 2.5 μm 6 - 18 μm 9 - 26 μm 18 - 77 μm
반복 정밀도
(Repeatability Z)		 TBD TBD TBD TBD
해상도
(Field Of View)		 22 - 28 mm 57 - 102 mm 102 - 164 mm 163 - 332 mm
이격 거리
(Clearance Distance)		 56 mm 98 mm 173 mm 310 mm
측정 범위
(Measurement Range Z)		 21 mm 107 mm 162 mm 400 mm
인터페이스
(Interface)		 Gigabit Enthernet Gigabit Enthernet Gigabit Enthernet Gigabit Enthernet
데이터 포인트/프로파일 2048 2048 2048 2048
레이저 파장
(Illumination)		 Blue Blue Blue Blue

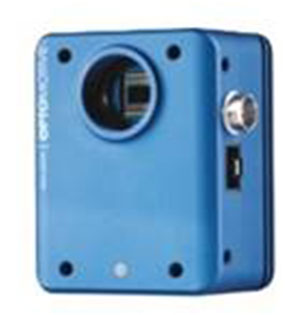

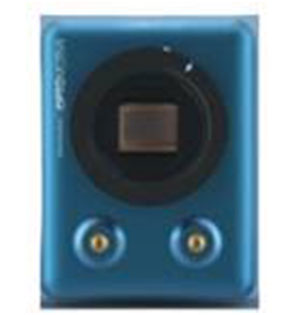

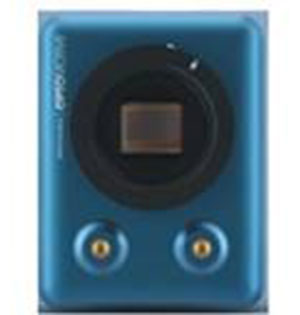

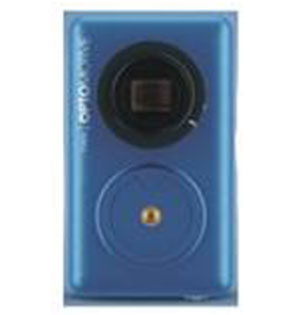

3D Camera

SMILODON SPINOSAURUS T-REX
Model SMILODON 10G EVO SPINOSAURUS EVO SPINOSAURUS LX EVO T-REX
Type 3D Camera 3D Camera 3D Camera 3D Camera
Resolution 5 - 25 M 0.5 - 7.1 M 28 M 2 - 4 M
Spectral Option Mono / Color Mono / Color Mono / Color Mono / Color
Near-IR
Interface 1G or 10G SFP+ 10G SFP+ 10G SFP+ 10G PoE
Use Peak Detection
BLOB Detection
RLE Compression		 Peak Detection
BLOB Detection
RLE Compression		 Peak Detection
BLOB Detection
RLE Compression		 Peak Detection
BLOB Detection
RLE Compression
Product

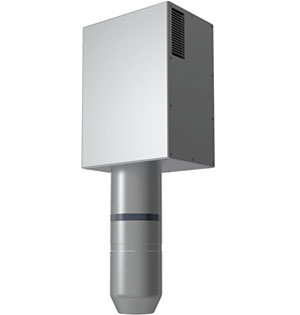

3D Line Confocal Sensor

Model IFN-CL 2.41 IFN-CL 4.5 IFN-CL 12.2
Measuring Range 0.68 mm 2.5 mm 10.6 mm
Line Length 2.36 ± 0.05 mm 4.4 ± 0.1 mm 11.9 ± 0.3 mm
Pitch 1.97 ± 0.04 μm 3.69 ± 0.08 μm 9.9 ± 0.2 μm
Working Distance 9.2 ± 0.4 mm 27.0 ± 0.6 mm 36.6 ± 1.0 mm
Axial Resolution 0.05 μm 0.2 μm 0.8 μm
Linearity 0.5 μm 2 μm 8 μm
Numerical Aperture 0.77 0.55 0.22
Measurement
Angle to Surface		 90º ± 50º 90º ± 33º 90º ± 13º
Dimensions Length 155 mm 160 mm 118 mm
Dimensions Diameter 90 mm 90 mm 90 mm

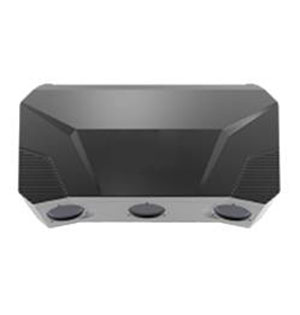

3D Pattern Area Sensor

Model UHP i-CN 600 i-CN 1000P i-CN 2000P i-CN 3000
Optimal Scanning Range 300 mm (DOF ± 20mm) 300 - 600 mm 500 - 1000 mm 1000 - 2000 mm 1200 - 3000 mm
Near FOV 135 x 90 mm 220 x 150 mm 370 x 240 mm 800 x 450 mm 1200 x 1000 mm
Far FOV 150 x 100 mm 440 x 300 mm 800 x 450 mm 1500 x 890 mm 3000 x 2400 mm
X Resolution 66 - 73 μm 172 - 344 μm 193 - 417 μm 417 - 782 μm 586 - 1465 μm
Resolution 2048 x 1536 (3MP) 1280 x 1024 1920 x 1200 1920 x 1200 2048 x 1536
Z Repeataility 2.6 μm 100 μm 50 μm 200 μm 500 μm
Accuracy 30 μm (VDI/VDE) 100 μm 100 μm 200 μm 1 mm
Capture Time 0.6 - 0.9 s 0.6 - 1.1 s 0.3 - 0.6 s 0.3 - 0.6 s 0.5 - 0.9 s
Weight 1.9 kg 0.7 kg 1.6 kg 1.9 kg 2.9 kg
Dimension 260 x 65 x 142 mm 145 x 51 x 85 mm 265 x 57 x 85 mm 353 x 57 x 100 mm 459 x 77 x 86 mm

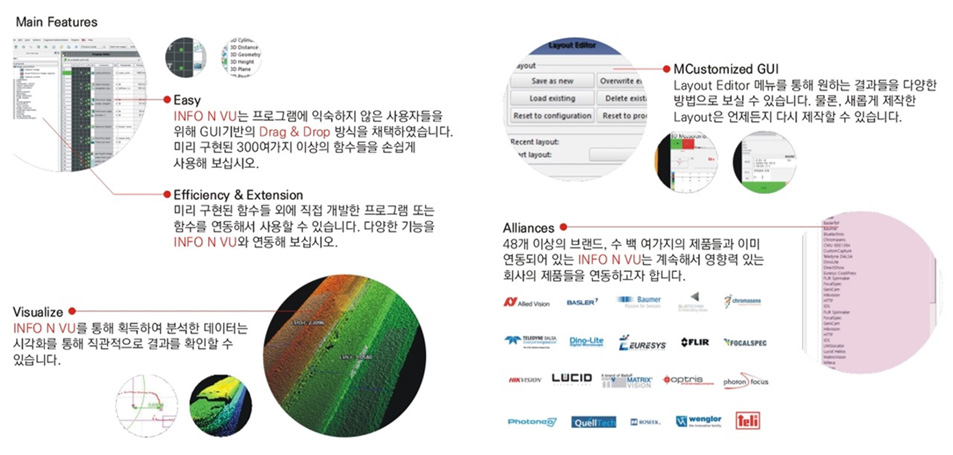

3D Machine Vision Software : INFO N VU
